PEW series Jaw Crusher Brief Introduction
The PEW series Euro-style jaw crushers have adopted the international advance technology of the
V-shaped crushing cavity, the brand-new frame and movable jaw structure and the hydraulic adjust-
ment and centralized automatic lubrication to have greatly improved the equipment performance as well
as operation and maintenance convenience.
1. euroan style stone crushing used /w series jaw crusher low price opration is stable and reliable, fixed with over-loading protective device.
2. Big feeding granularity and breaking ration, large capacity.
3. Low energy consumption , little spare parts, low maintenance cost.
4. Adjusting parts are reinforced emphatically and finish machining, reduce repair frequence.
5. euroan style stone crushing used /w series jaw crusher low price has axle bearing adopts with Multi-storey labyrinth seal, prolonging operation life.
6.Using modules lubrication, more easier and convenient for maintenance.
7.Adopting belt pulley new locking craft, keyless connection, making mainenance more convenient.
PEW series jaw crusher advantages
1.Large capacity, low operating cost, reliable operation, easy maintenance.
2.More advanced movable jaw assembly lengthens life of crusher.
3.Chamber "V" structure make actual feed width comply with the nominal one.
4.Integral cast steel bearing housings.
5.Central lubricating device are installed on the machine, so the bearing is easy to be lubricated.
6.Fast and safe setting adjustment.

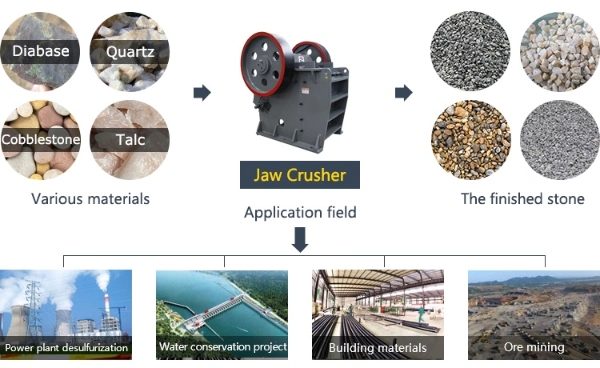

PEW series jaw crusher applications
PEW series jaw crusher is typically used as primary crusher or the first step in the process of reducing rock. They typically crush using compression. It is widely used in Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.. It can process Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, minerals, quartz, diabase, etc...

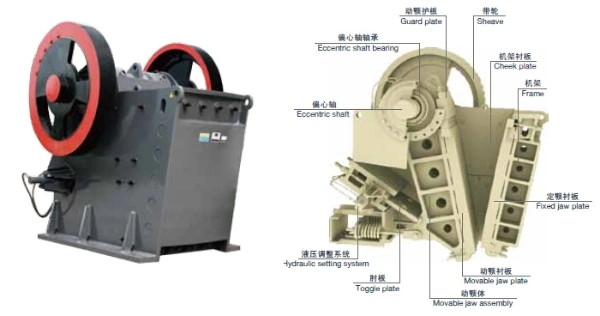

PEW series jaw crusher working principle
This euroan style stone crushing used /w series jaw crusher low price adopts the electric motor as the power. The eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw following the preconcerted path to crush the feeding material. Thus the material will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. The material is discharged from the lower part of machine that is what you want.
PEW series Jaw Crusher Specifications
|Model||Feed Opening (mm)||Max Feeding (mm)||Discharge Opening (mm)||REV (r/min)||Power (kw)||Motor Model||Machine Size (mm)|
We can provide different types crusher
Working sites from Super-Above clients
We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases. If exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the PE film according to the customer's special requirements.
We are based on the actual needs of customers, to carry out tailor-made sales. By senior engineer to design scheme, after receipt of customer deposits began production, regardless of the size of the equipment we can deliver the goods in two weeks, delivered the balance after delivery.
1) Inquiry and consulting support.
2) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
3) View our Factory. Field trips to sell products.
1) After acceptance of the equipment, we will draft the construction program and detailed process, and complete the export process.
2) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
Q1. How long is the warranty of your equipments? Does your company supply the spare parts?
The warranty period of crusher equipments is 12 months. Yes, we supply the spare parts for you at lowest cost and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q2. What Information should customers give us? So that we can be able to provide you suitable solution and equipments.
1. What's the capacity you prefer? ( such as 150TPH etc )
2. What is the raw material you want to process? ( such as andesite, basalt, etc )
3. What is the input size of your raw material?
4. What's the final product size do you want?
Q3. Can you test our samples? Do you provide beneficiation flow chart?
Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4. If I need the complete crushing plant can you help us to build it?
Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.
If you have any interests, pls don't hesitate to contact us.
