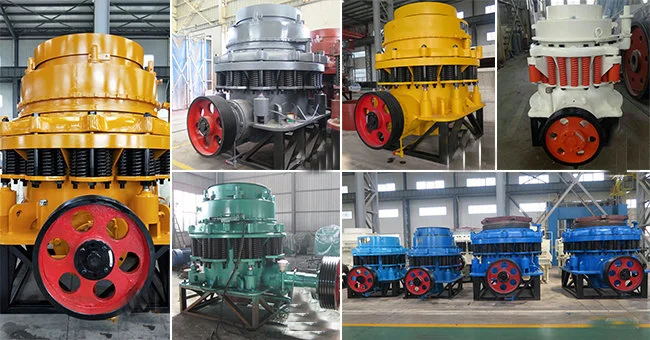

Brief introduction of Cone Crusher for Sale
The cone crusher is for intermediate crushing with advanced technologies introduced from abroad, and there is a total of three specifications. The entire design uses an appropriate eccentric distance, the outlet is adjustable, the cavity design is reasonable, and the materials of uniform size less than 8mm can be obtained.
The Cone Crusher has a great crushing performance in the work of medium-size crushing, fine crushing and super fine crushing. The Spring Cone Crusher is the improved type of spring cone crusher and can be used to replace ordinary hydraulic cone crusher in the field of mining and construction. It is the most ideal equipment for large stone crushing factory and mining industry.
Features of Cone Crusher
1.cone crusher has the characteristics of large breaking force, high efficiency, high crushing capacity, low operating cost and long service life. It is convenient to operate and is economical.
2. The crushed materials are of equal size, thus reducing circulating load.
3. Large and medium-sized crushers adopt hydraulic chamber-cleaning systems, which will help reduce the down time.
4. Cone crushers with different chambers are available, to meet our customers' requirements.
5. Grease seal can effectively avoid the blockage of water feeding system and drainage system, as well as mixing of water and oil.
6. As the overload protection device, spring safety device allows foreign matter and iron pieces to pass through the crushing chamber without jeopardizing machines.
Applications of Cone Crusher
Cone crusher is a kind of crushing machine commonly used in mining, metallurgical industry, construction, road construction and chemical industry. It can be used to crush hard and medium hard minerals, rocks, iron ores, limestone, copper ores, quartz, granite, sandstones, etc.
Components of Cone Crusher
mainly consists of frame, horizontal axis, cone brake, balance wheel, eccentric sleeve, upper crushing wall (welding cone), down crushing wall (movable cone), fluid coupling, lubricating system, hydraulic system and control system.
Working Principle of Cone Crusher
1. When cone crusher is working, motor drives the eccentric sleeve to rotate. The eccentric sleeve drives the transmission shaft and cone part to make swing movement. When they swing to the extent that the surface of the crushing wall is close to the roll mortar wall, the rocks and ores are pressed and crushed.
2. Joint between supporting sleeve and frame is compressed by spring. When metal block and other materials that can no be crushed fall into the crusher, spring will be out of sharp and discharge the objects.
3. When the materials that can not be crushed pass through the crushing chamber or the machine overloads, the spring safety system makes the cone discharging hole become larger. When objects are discharged from crushing chamber, discharging hole will automatically reset. Cone crusher resumes normal operations.
4. The surface of crushing chamber is covered with wear-resisting high manganese steel lining plate. Size of discharging hole can be adjusted hydraulically or manually.
Stone cone crusher technical parameters
Max Feed size

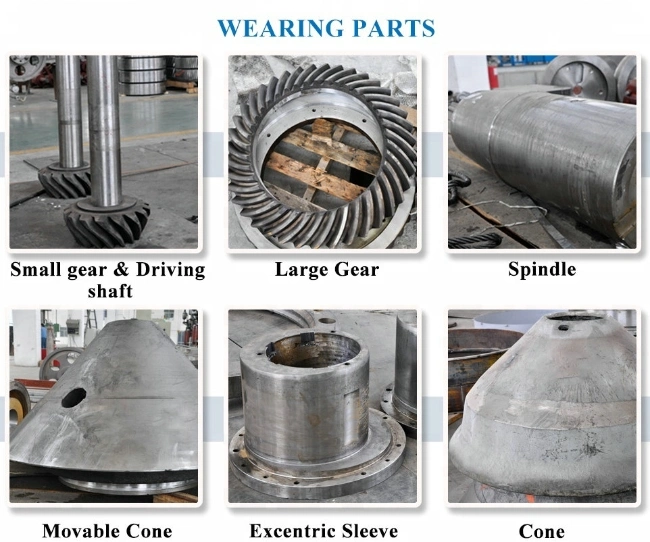

Wearing parts of cone crusher
Working sites of cone crusher
We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases. If exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the PE film according to the customer's special requirements.
We are based on the actual needs of customers, to carry out tailor-made sales. By senior engineer to design scheme, after receipt of customer deposits began production, regardless of the size of the equipment we can deliver the goods in two weeks, delivered the balance after delivery.
1. Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2. Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3. After-sale services: Available
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
4. We offer one year warranty to make sure your machine runs consistently.
We always offering lifelong services and provide spare parts for a long term,and repairing main parts under right using for free in two years.
Q: What about Warranty? what will we do if the machine is broken down ?
A: Hi, Ours Warranty is 1 year for whole machinery but spare parts .We will provide the technical advice and find the solution immediately for you when the machine is in troubleshoot. For those wear parts, we guarantee the high quality parts for long-term supply.
Q: What should we supply for you if we want to get a best quotation ?
A: Hi, if you want us recommend a suitable type for you ,please let us know
1). You only need a whole crushing line?(include the feeder,crusher,screen,conveyor and so on)
2). What is the capacity you need ? (tons per hour )
3).what is the max size of the stone? (mm/inch )
4).what is the output size you need ? (0-5-10-15mm )
5). What is the stone type? ( marble or others )
Q: What could you help me to do for the business ?
A: Many thanks for your trust , we can provide you with the preservices of design scheme for complete production lines ,spot inspection and operator traning according to your demands and the conditions of applied spot ,we can help you choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on.
